Unread postby Sharon Evans » Sun Sep 06, 2020 9:17 am

The final day of session F2 is at hand and time is spent cleaning up as well as wrapping up projects.
Hanging something on the side of the CRF (1 of 1).jpg

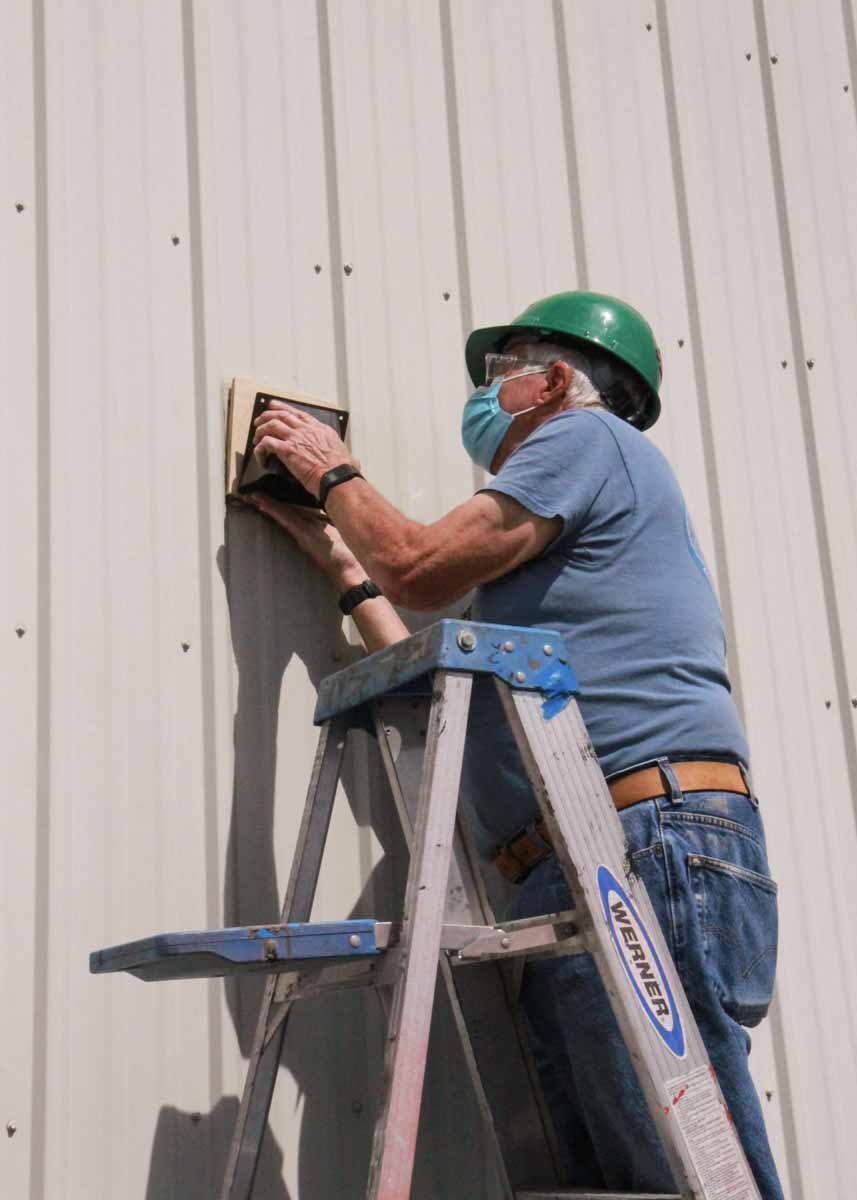

Hanging something on the side of the CRF

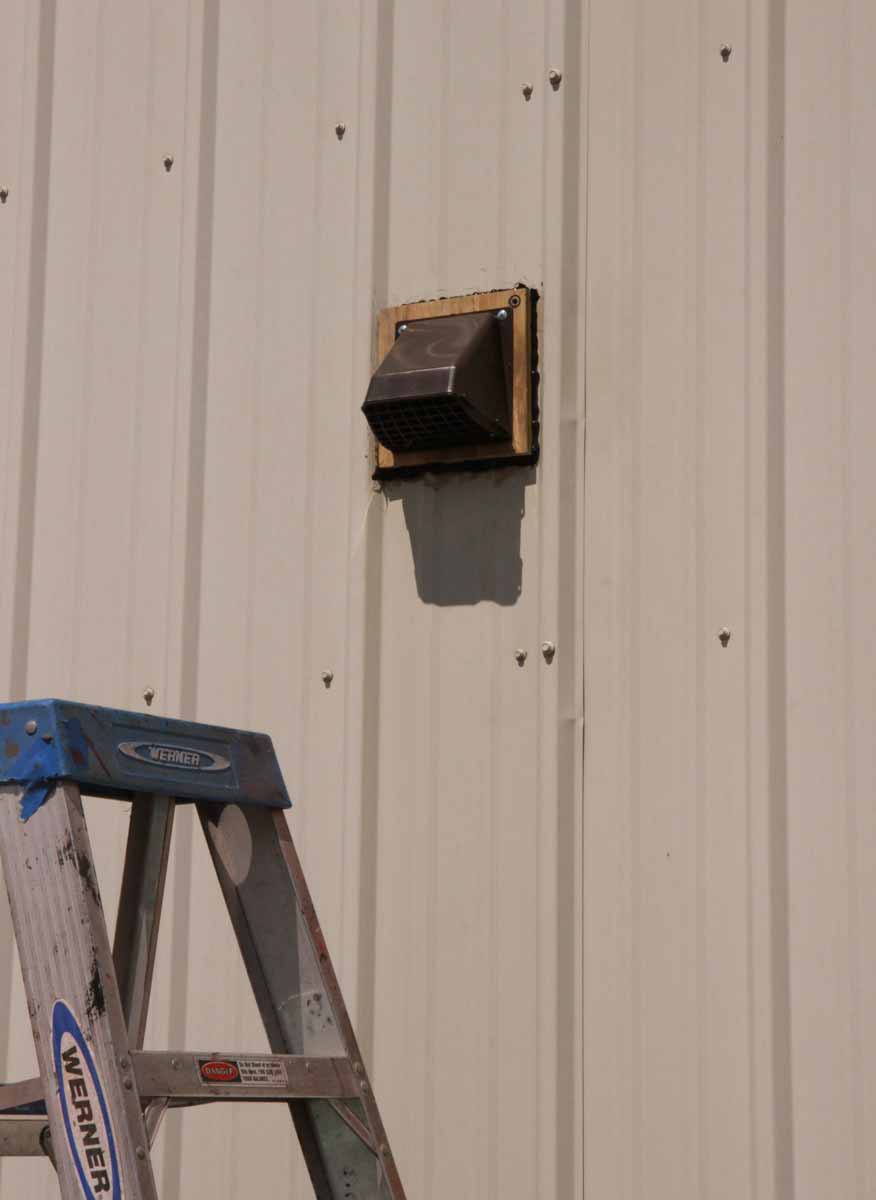

Why is a vent (1 of 1).jpg
Why is a vent

The press counter weight gets a coat of black (1 of 1).jpg
The press counter weight gets a coat of black

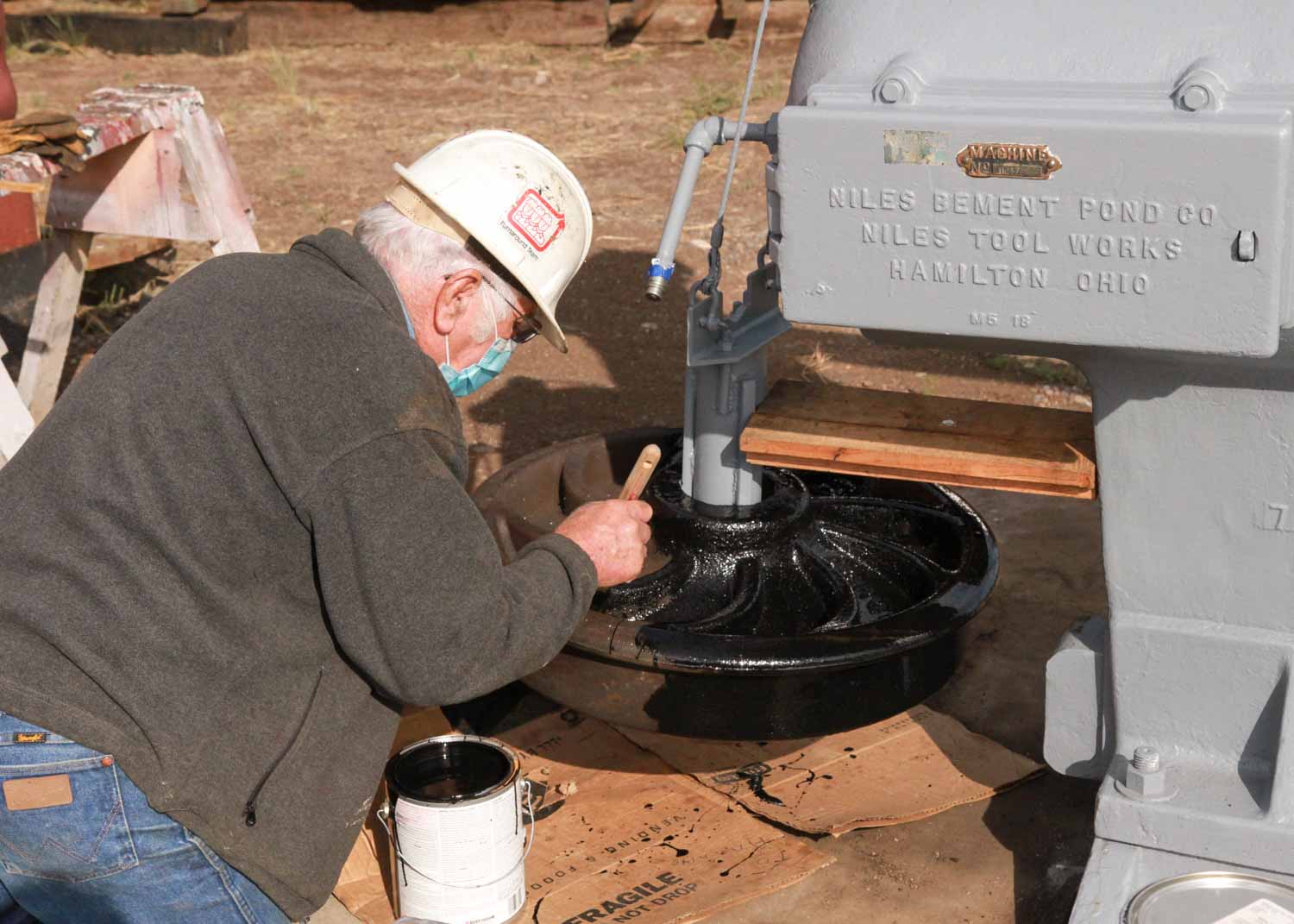

Final painting of pars for the wheel press (1 of 1).jpg
Final painting of pars for the wheel press

The wheel press is done (1 of 1).jpg

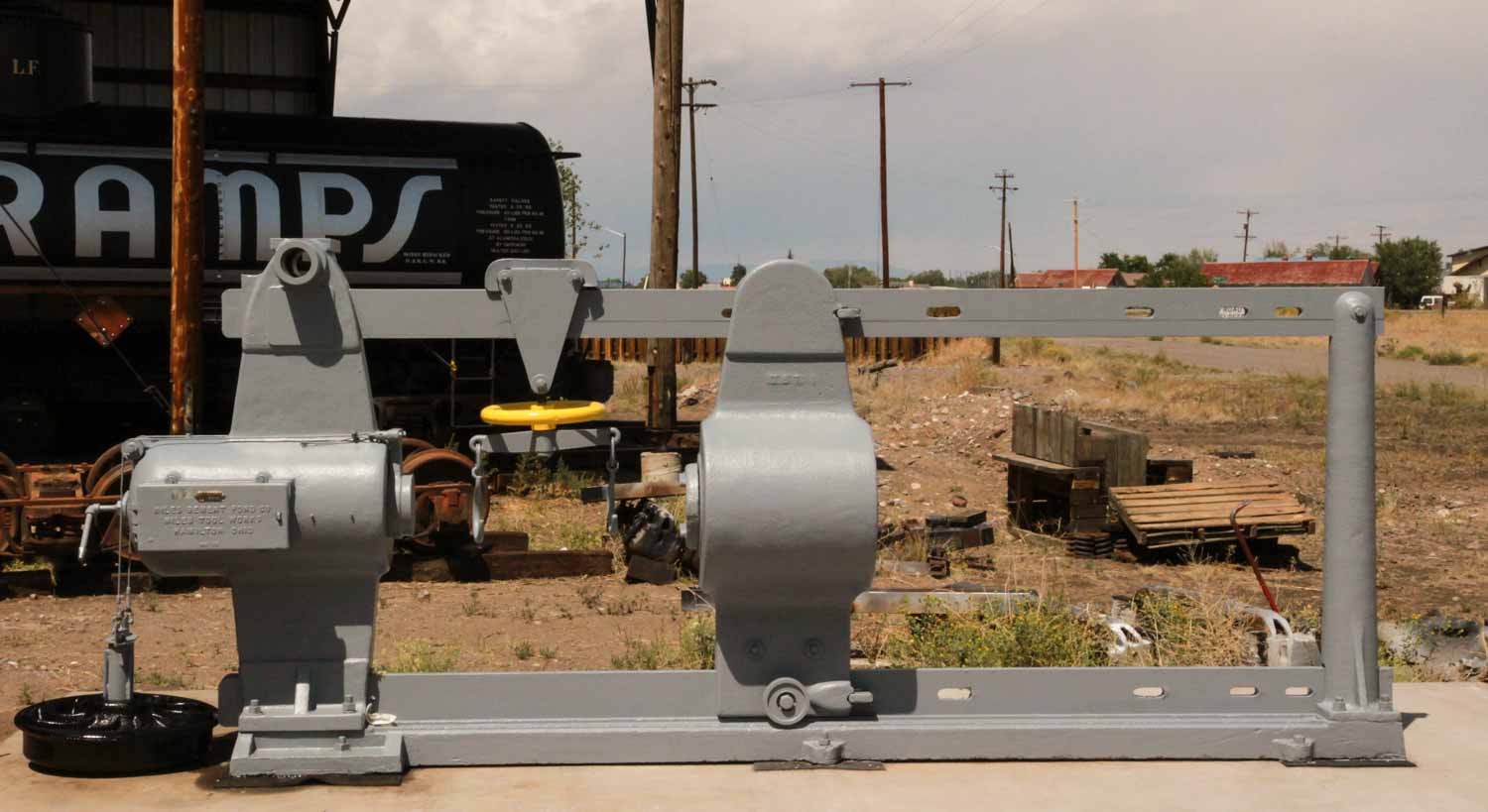

The wheel press is done

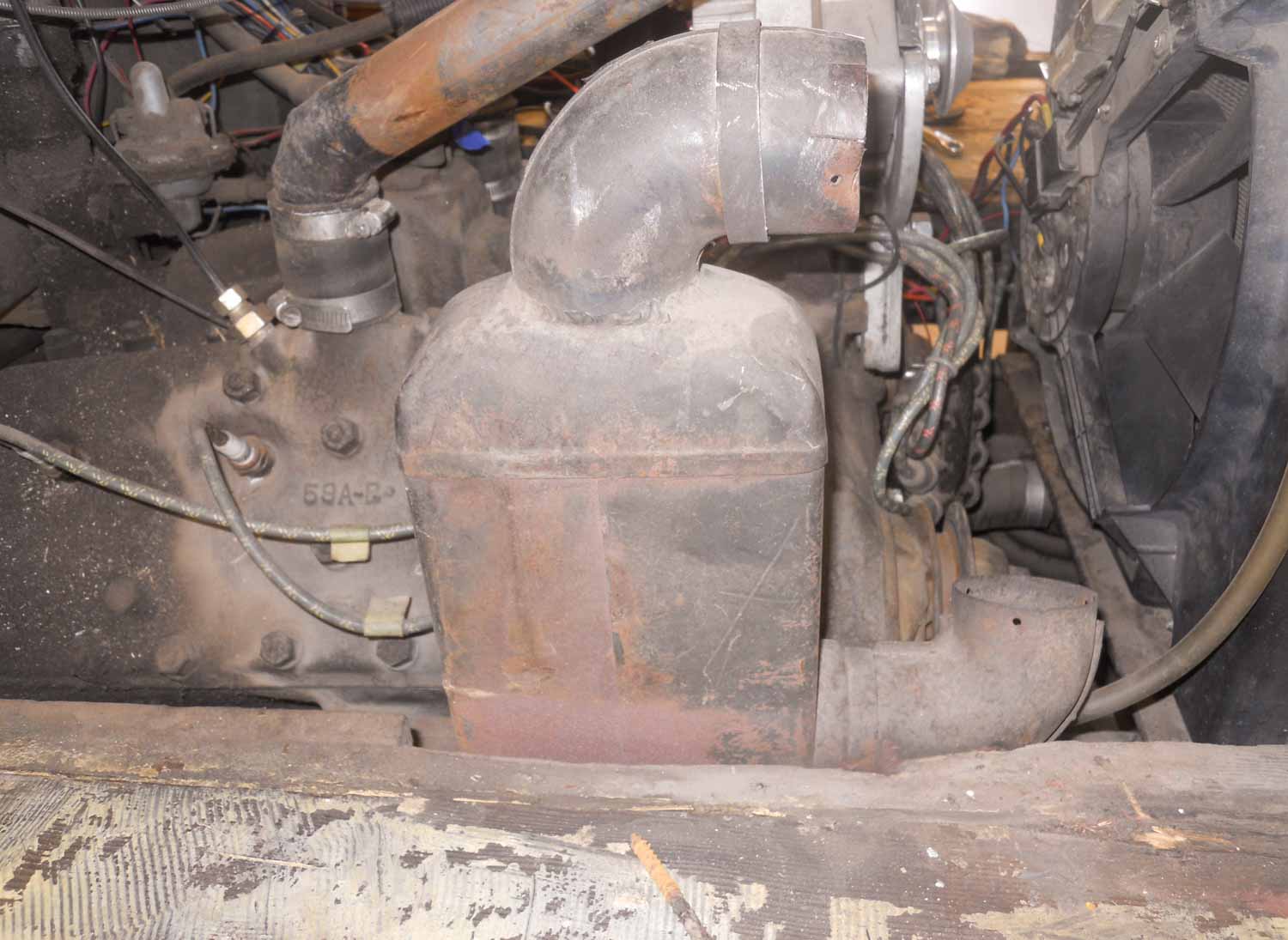

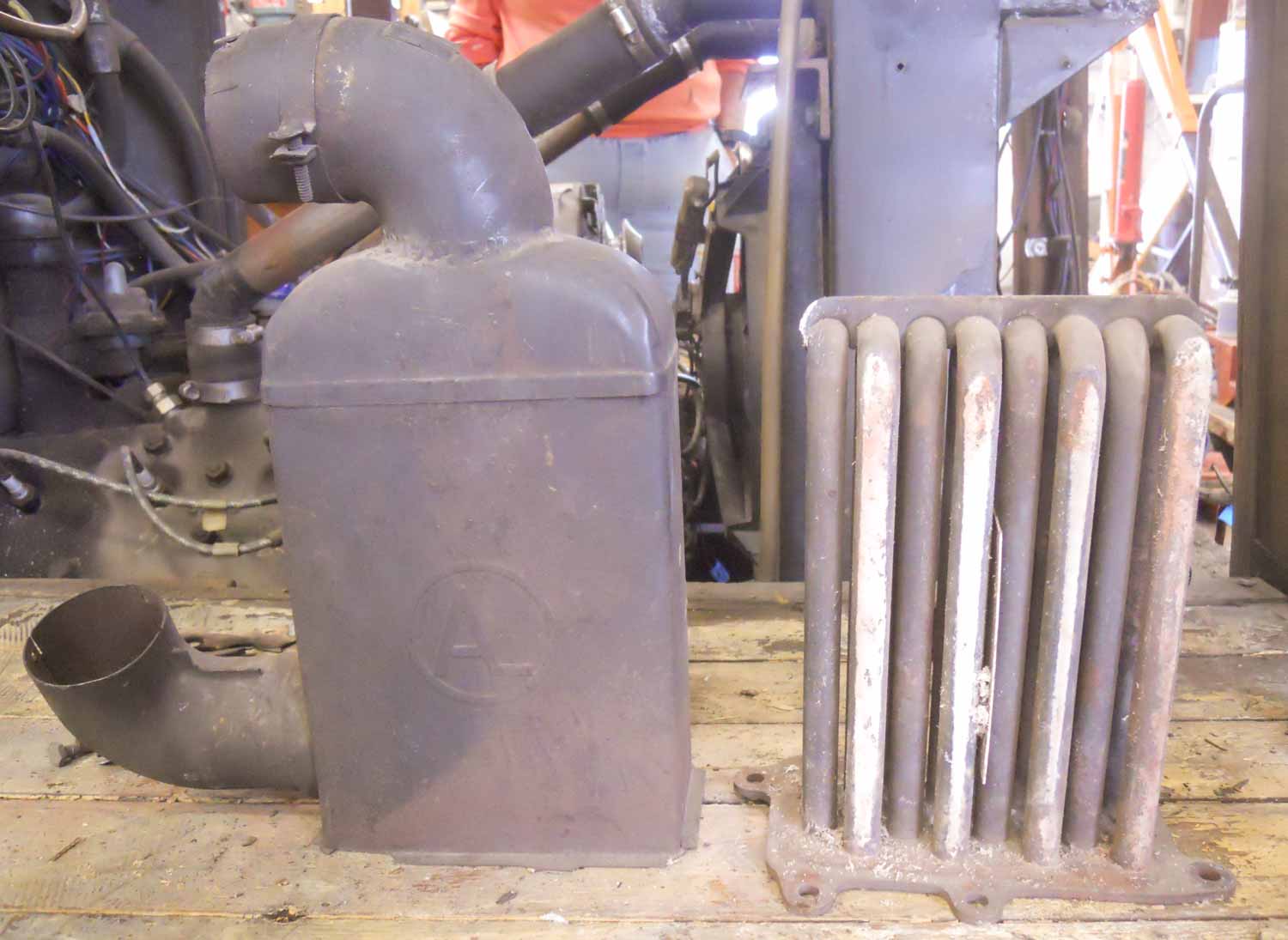

Looks like some cleanup has occured on the motor of MW02 (1 of 1).jpg
Looks like some cleanup has occurred on the motor of MW02

The motor of MW02 is being disassembled (1 of 1).jpg
The motor of MW02 is being disassembled

The large bit is now doing its work via the smaller pilot hole (1 of 1).jpg

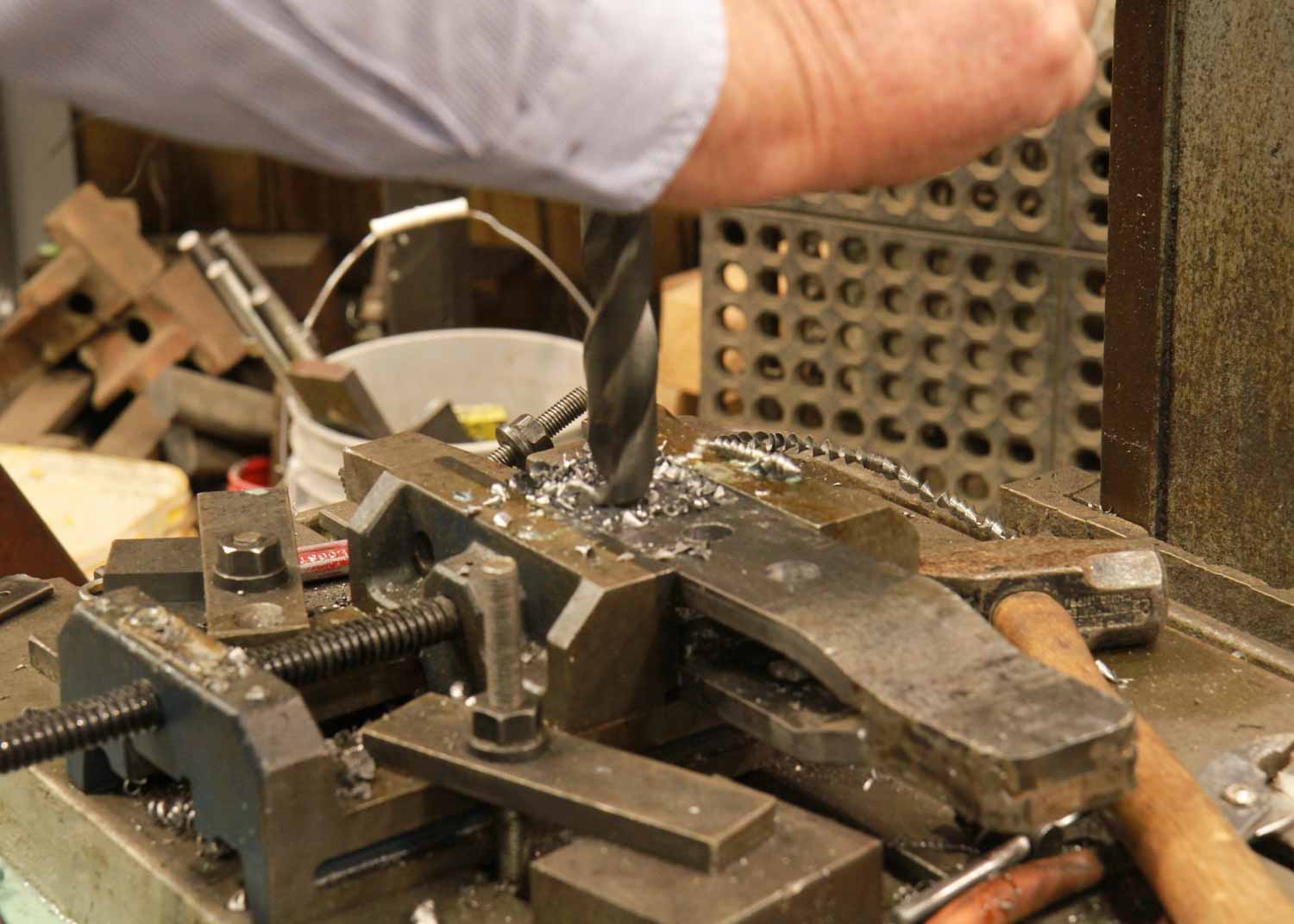

The large bit is now doing its work via the smaller pilot hole

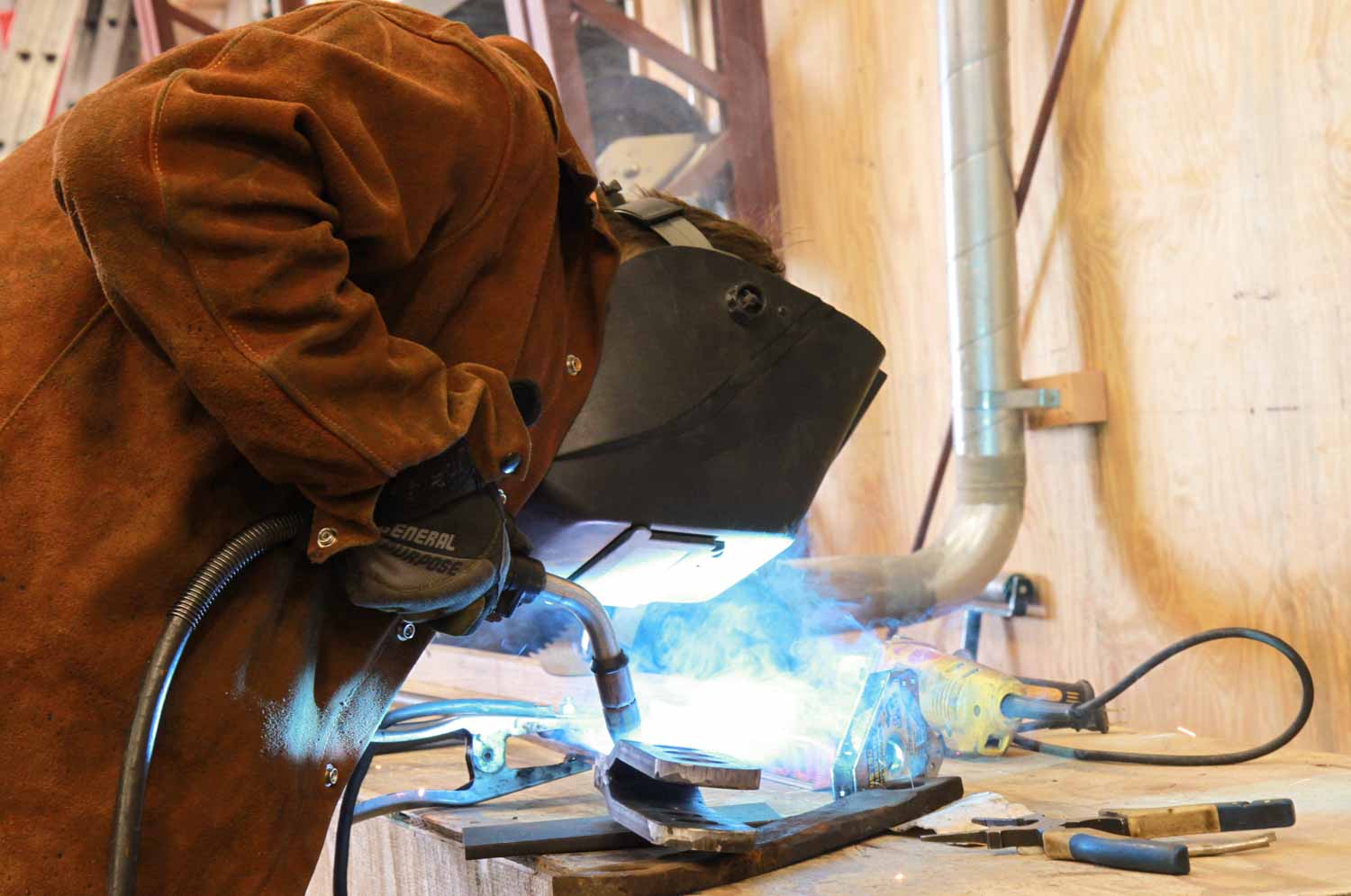

Welding is in progress (1 of 1).jpg
Welding is in progress

More work on getting those forks welled together (1 of 1).jpg
More work on getting those forks welled together

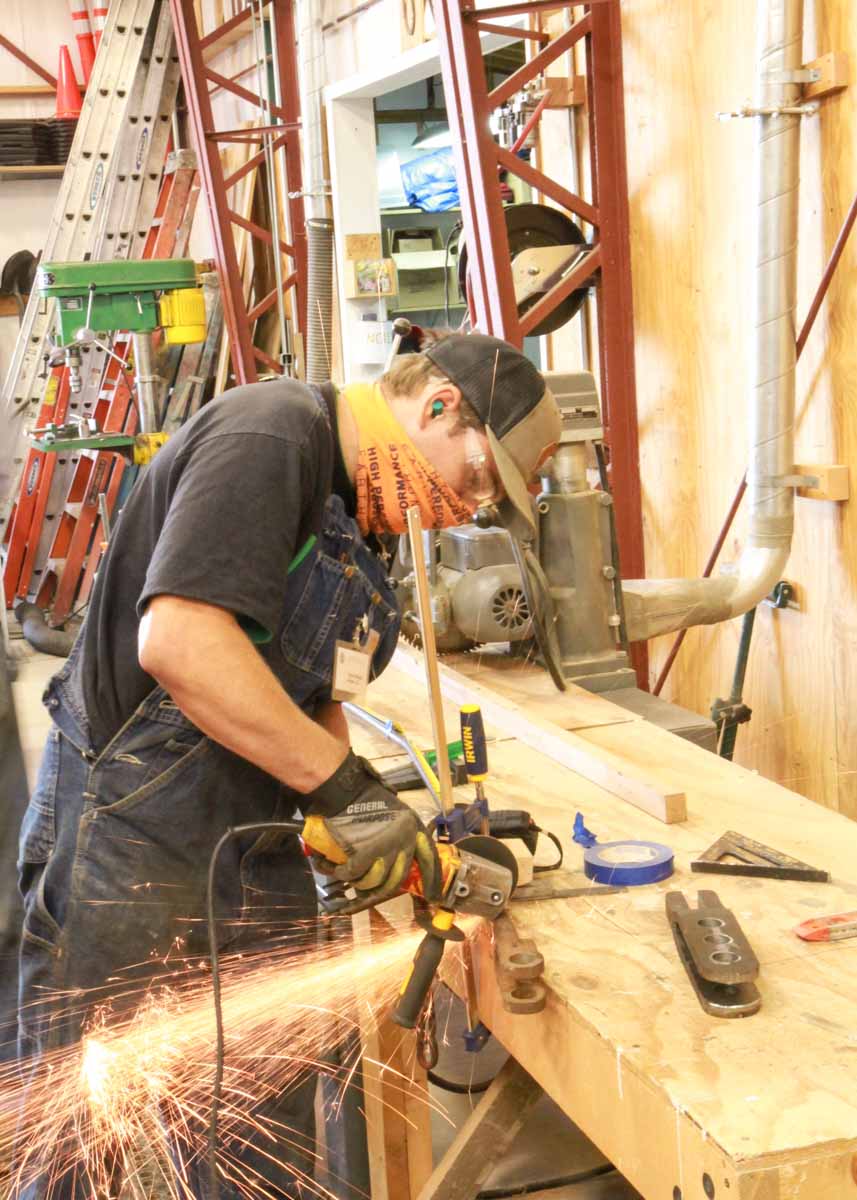

The sparks fly from the angle grinder (1 of 1).jpg
The sparks fly from the angle grinder

Some final grinding is being down on the foke assembly (1 of 1).jpg
Some final grinding is being down on the fork assembly

Some measurement is being donw (1 of 1).jpg
Some measurement is being done

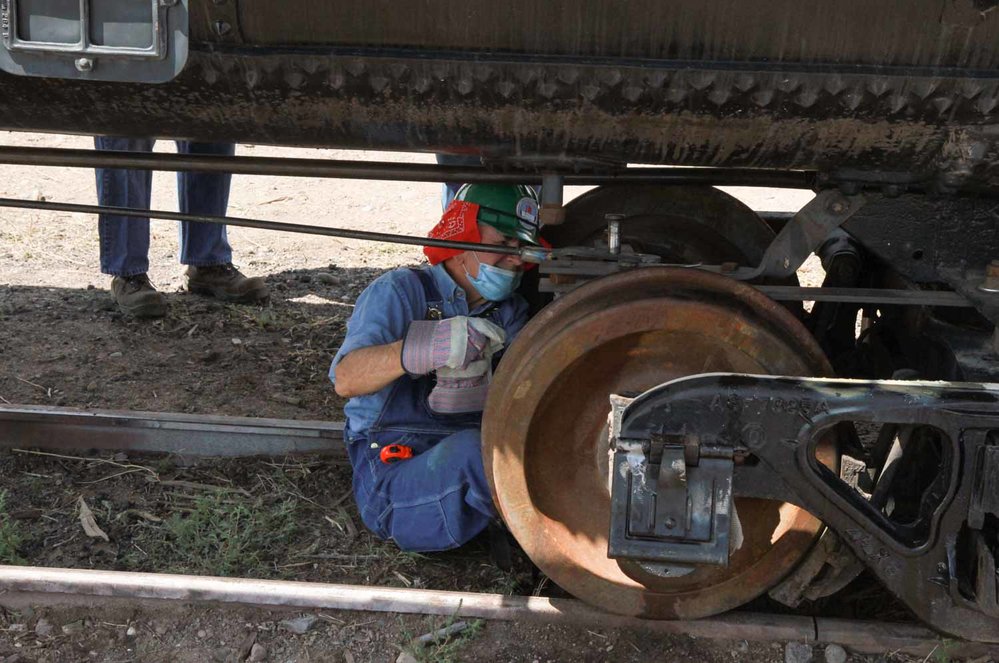

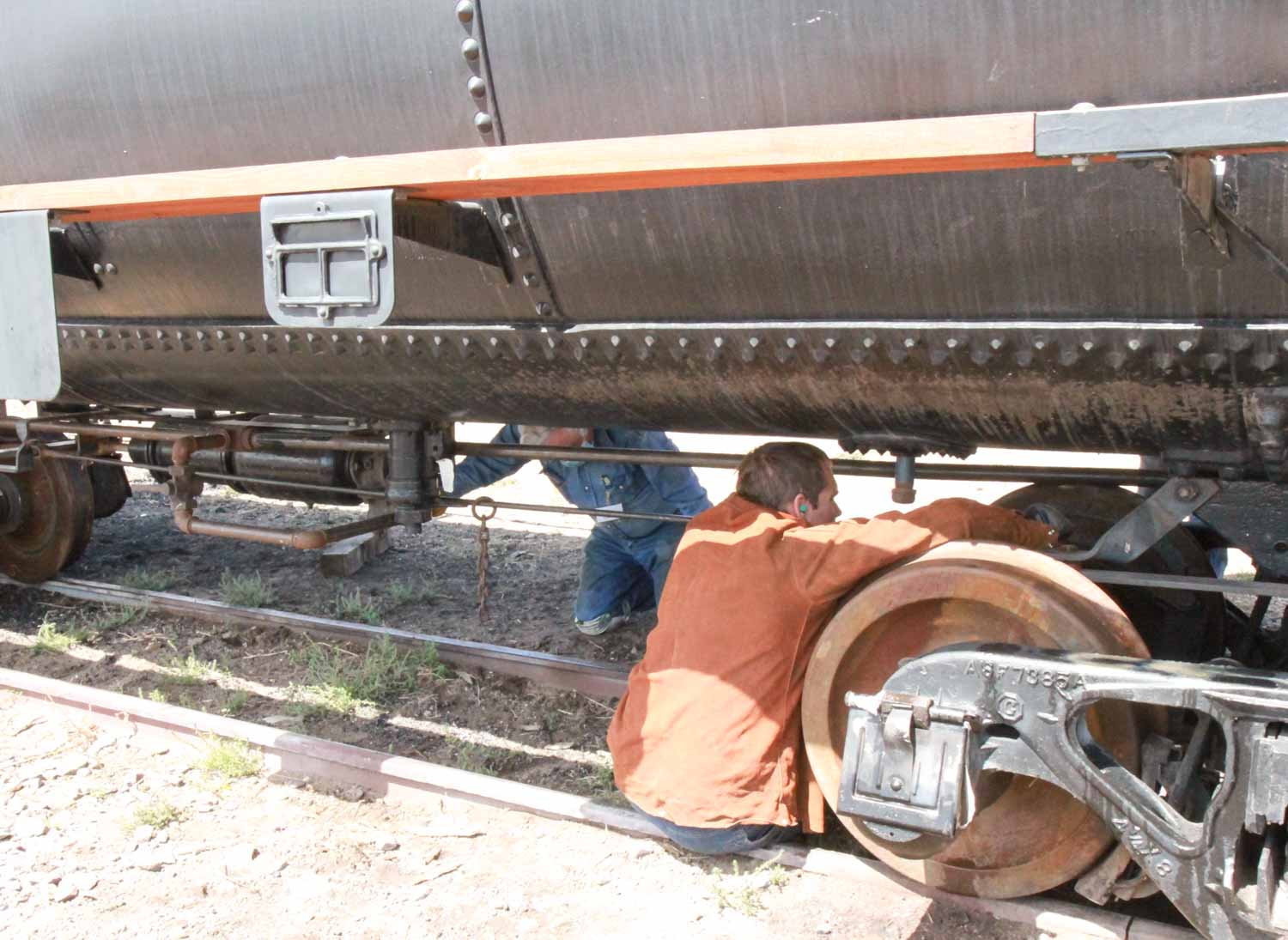

Working under the Union tank car on the brake rigging (1 of 1).jpg
Working under the Union tank car on the brake rigging

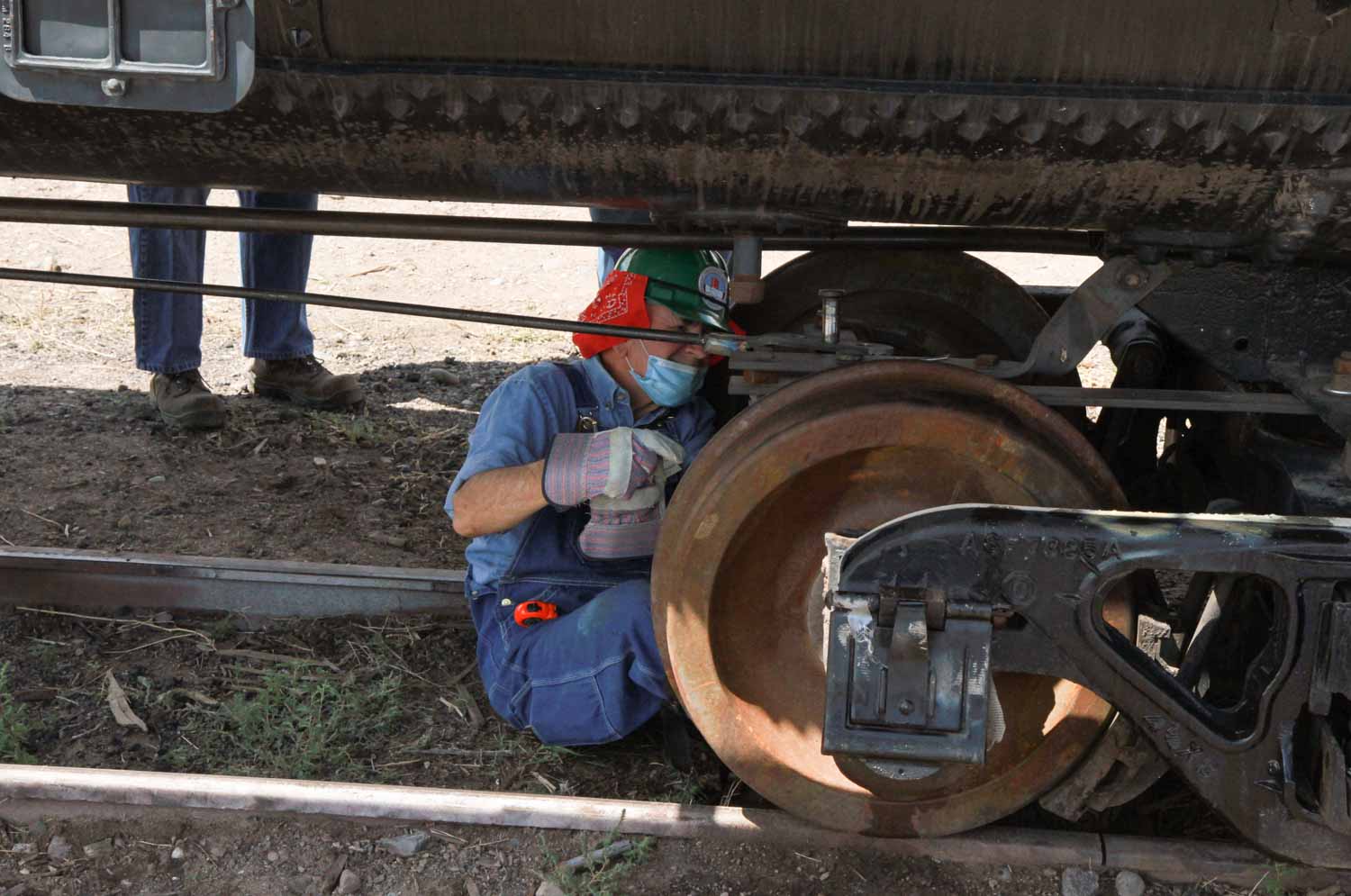

Working on the brake rigging of the Union tank car (1 of 1).jpg
Working on the brake rigging of the Union tank car

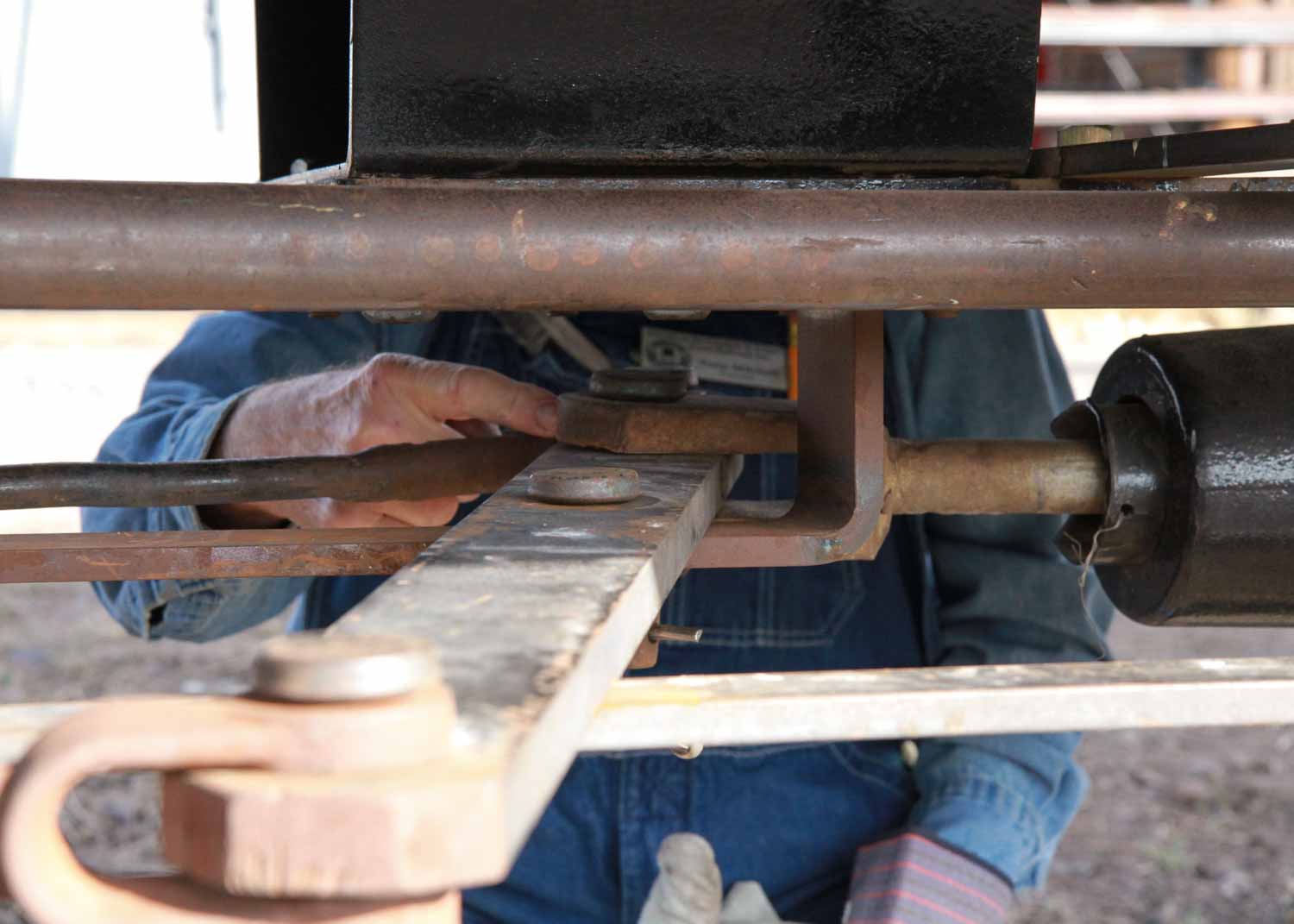

Adjustments are being made to the brake rigging on the tank car (1 of 1).jpg
Adjustments are being made to the brake rigging on the tank car

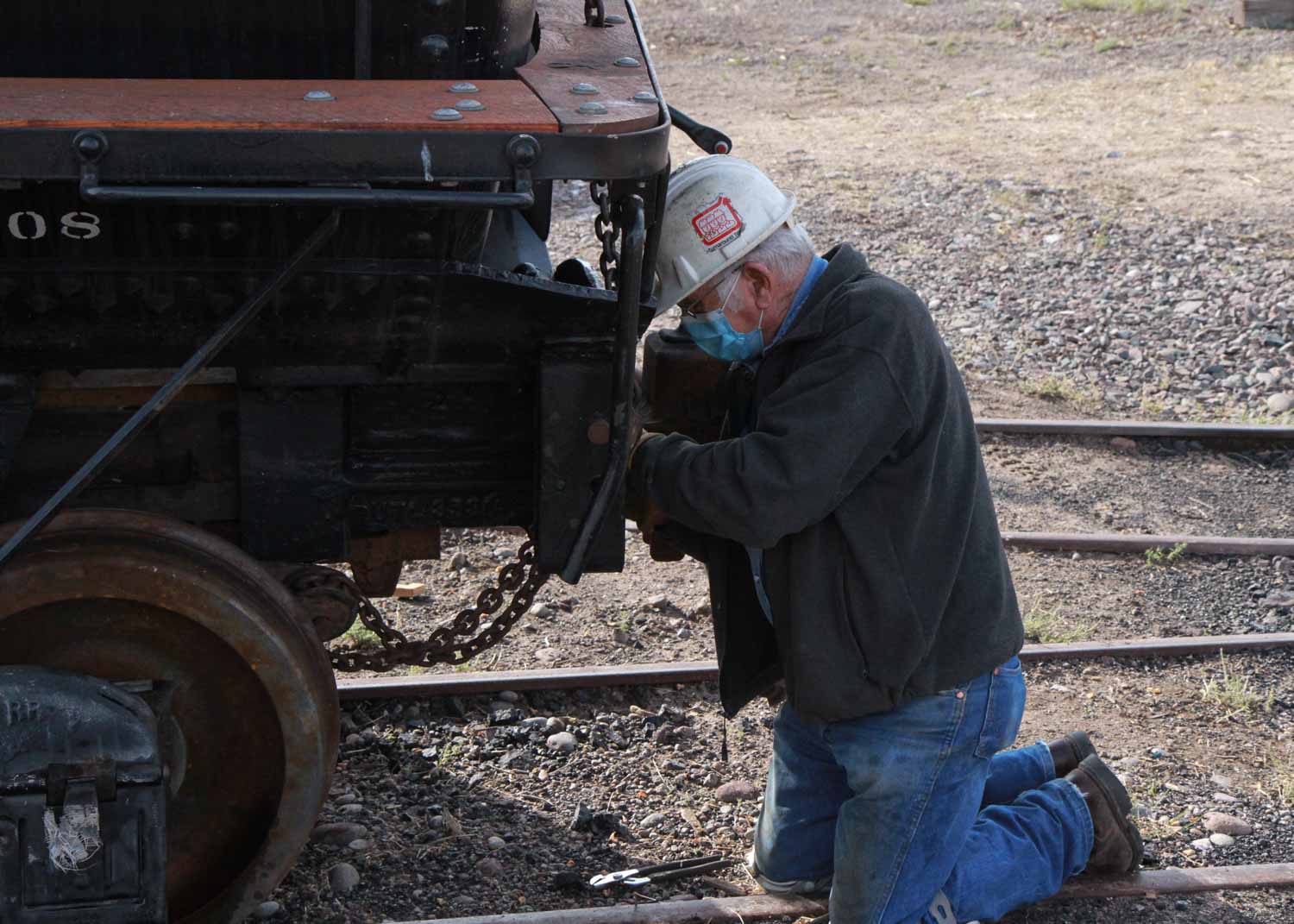

Working on what looks like the couple on the tank car (1 of 1).jpg
Working on what looks like the couple on the tank car

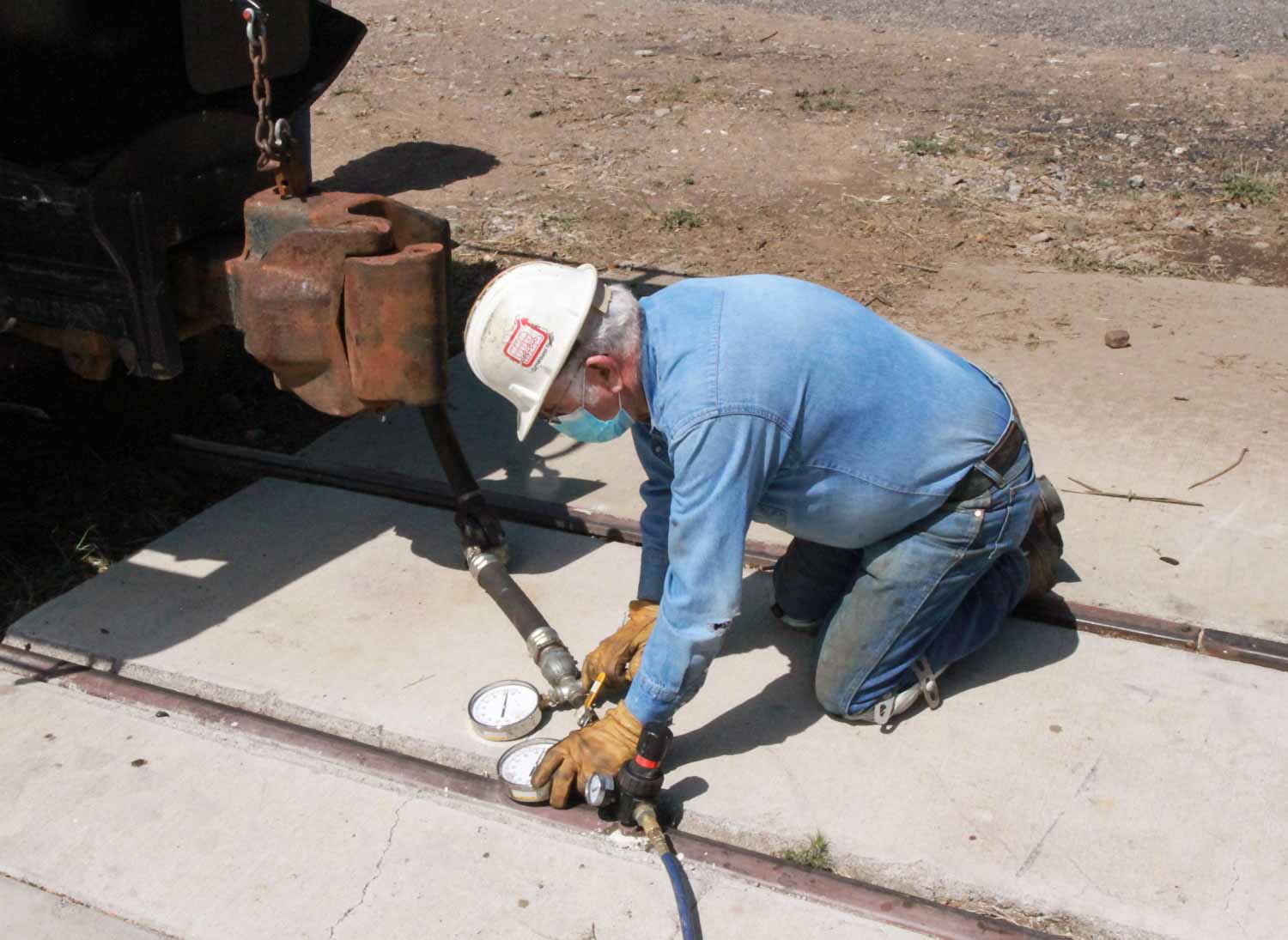

Using the testing jig to make sure the brakes work properly (1 of 1).jpg
Using the testing jig to make sure the brakes work properly

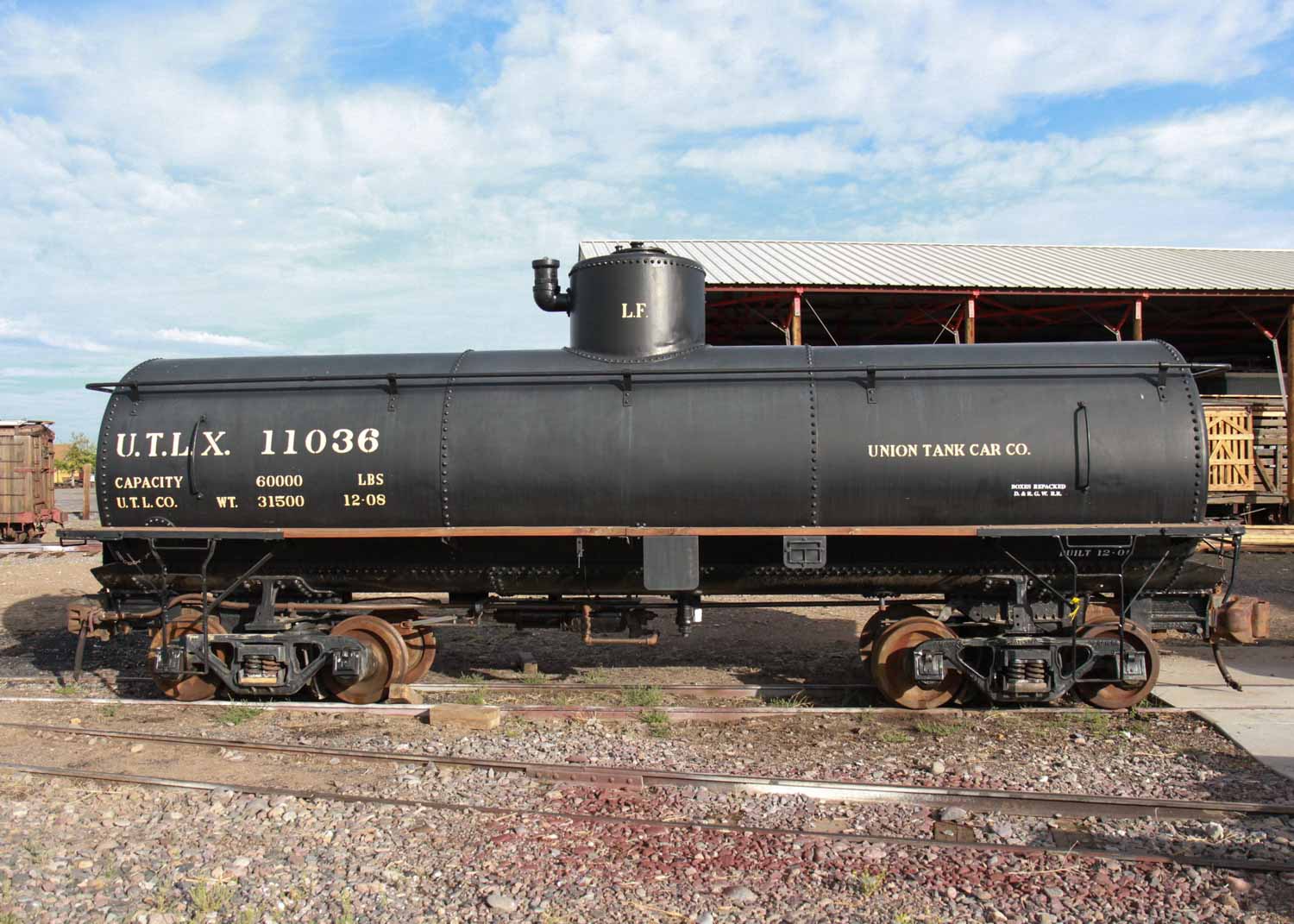

The Union tank car shows its new wheel assemblies (1 of 1).jpg
The Union tank car shows its new wheel assemblies

Its the final day of the session and cleaning is being done (1 of 1).jpg

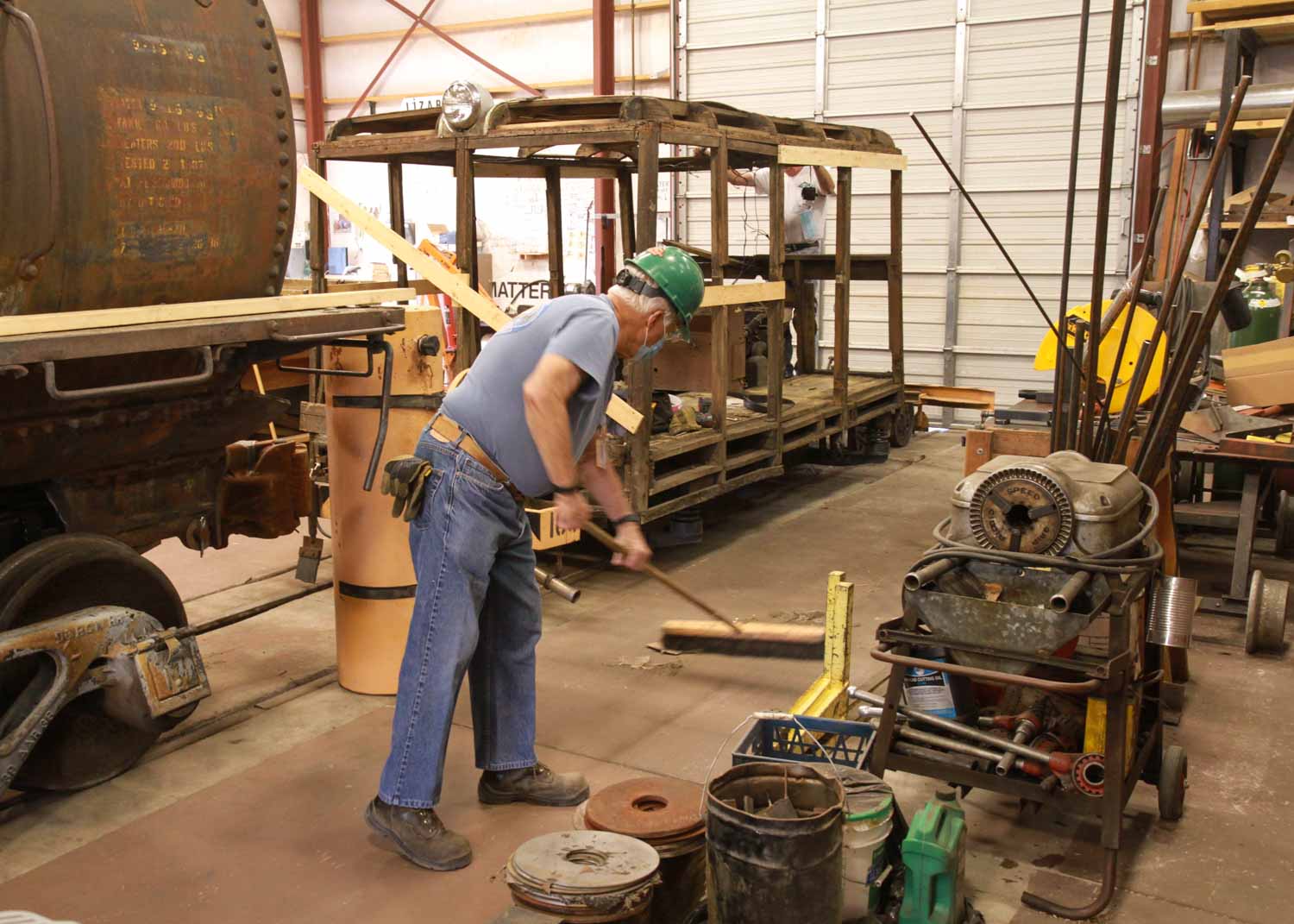

Its the final day of the session and cleaning is being done

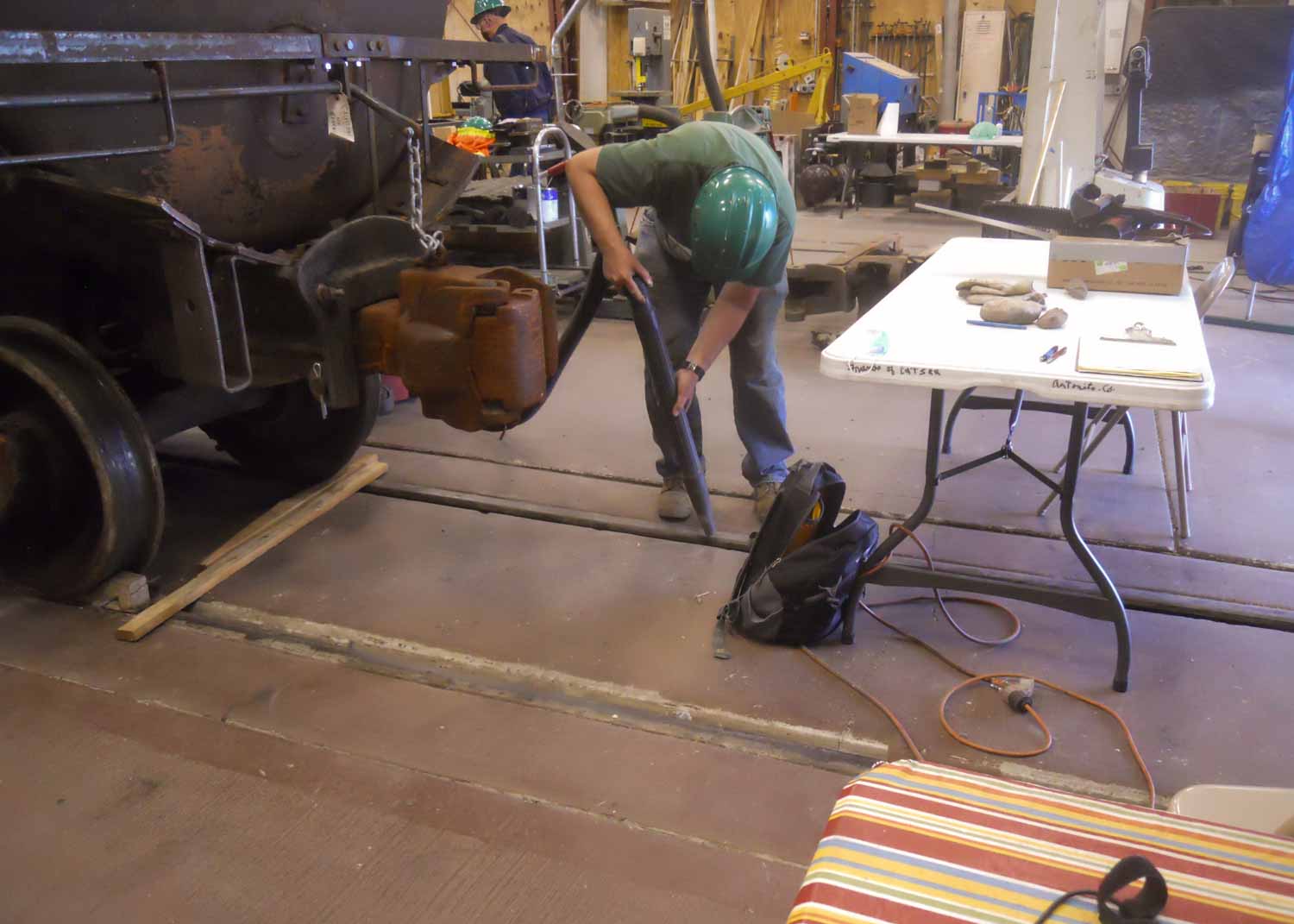

Shop cleaning continues (1 of 1).jpg
Shop cleaning continues

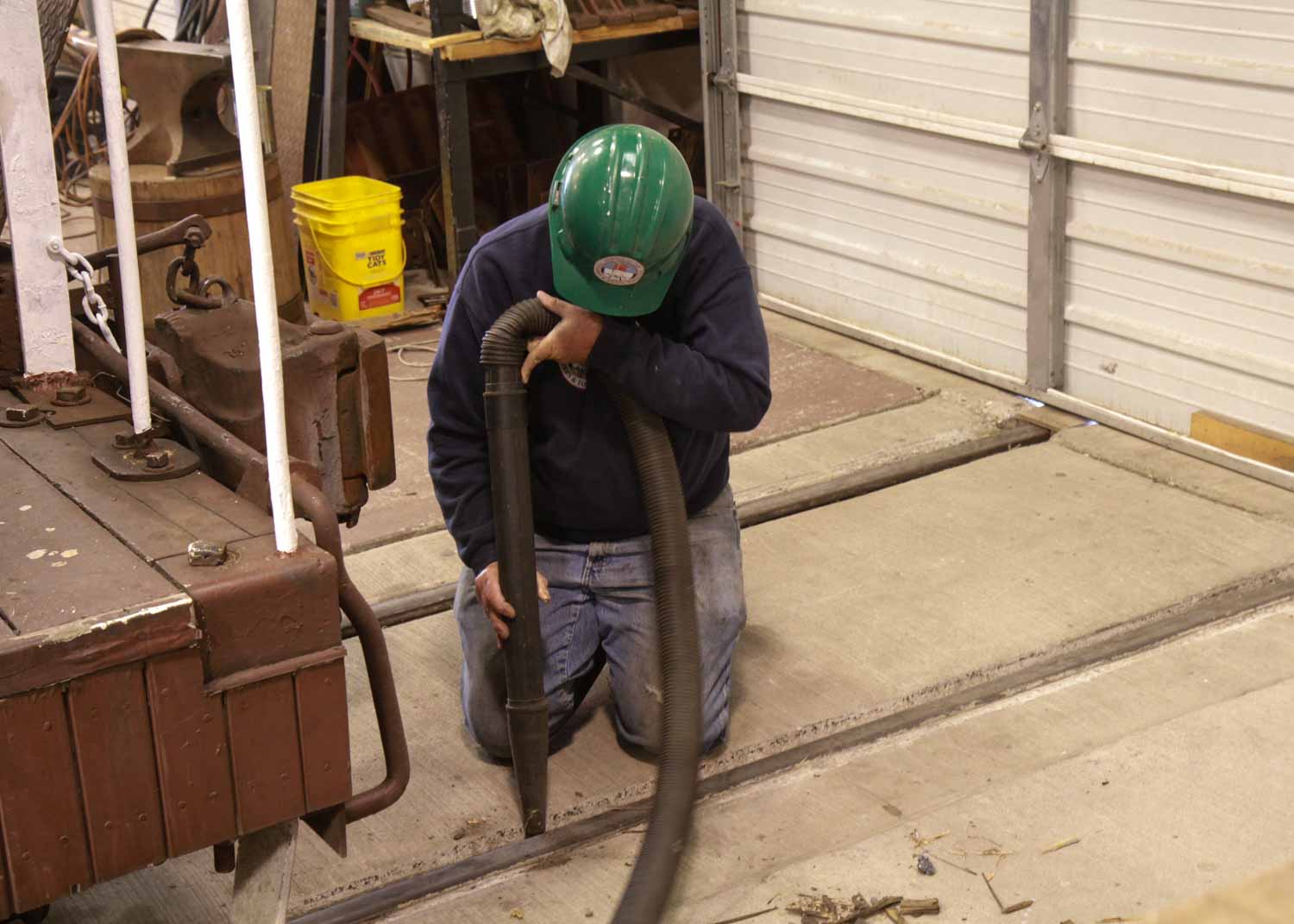

Getting into the gap between the rails to get as much trash out as possible (1 of 1).jpg
Getting into the gap between the rails to get as much trash out as possible
.
