Tender work session Antonito Nov 4, 2011
by Joe Kanocz » Fri Nov 25, 2011 2:32 pm
Group photo of volunteers who helped rebuild the tender for locomotive 463.
- Joe Kanocz
- Moderator
- Posts: 580
- Joined: Thu Nov 17, 2011 5:06 pm
Re: Tender work session Antonito Nov 4, 2011
by Joe Kanocz » Fri Nov 25, 2011 2:35 pm

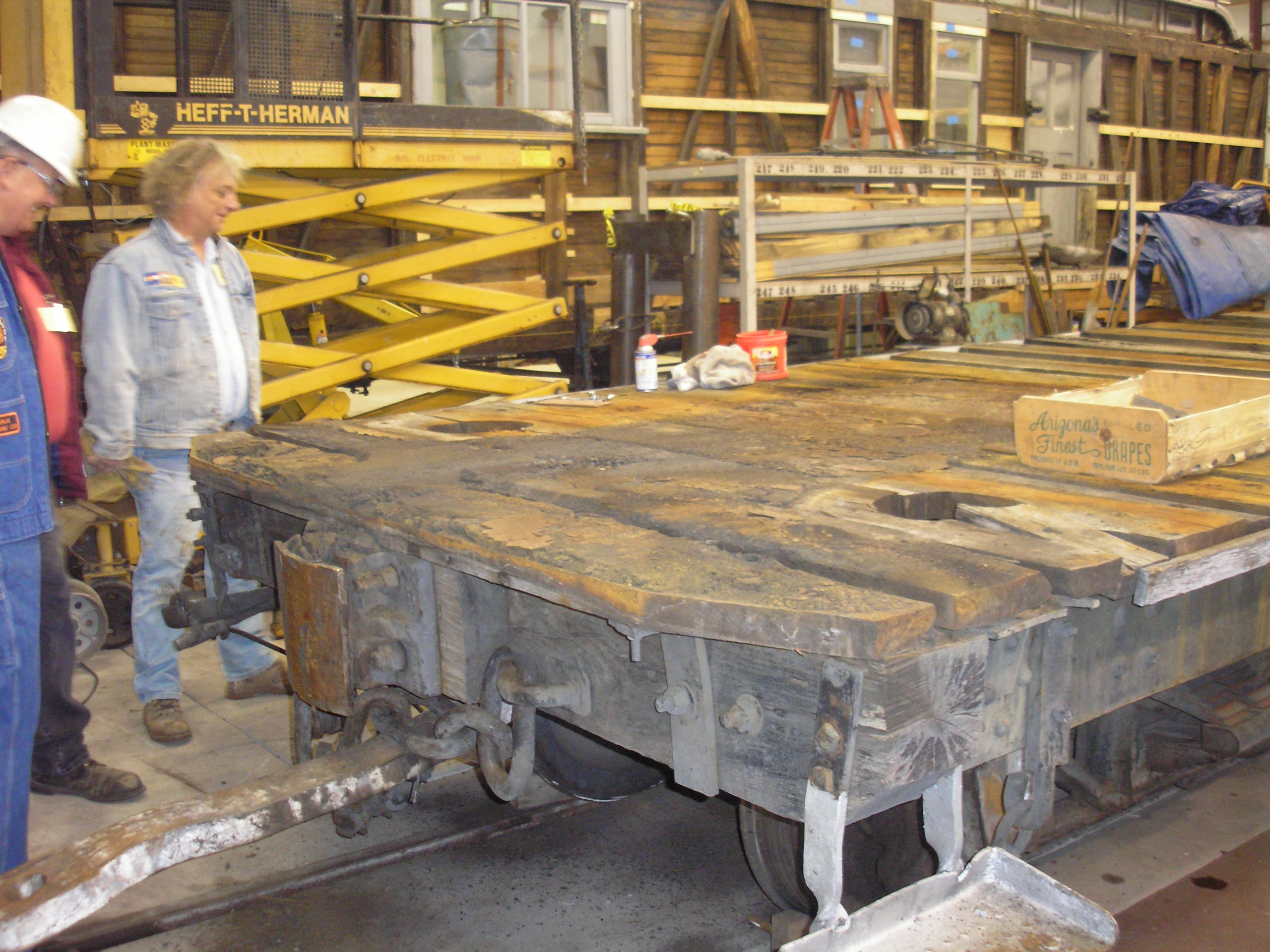

End of tender nearest locomotive before wood replacement.
- Joe Kanocz
- Moderator
- Posts: 580
- Joined: Thu Nov 17, 2011 5:06 pm
Re: Tender work session Antonito Nov 4, 2011
by Joe Kanocz » Fri Nov 25, 2011 2:38 pm
Someone who's usually never in the photos since he's taking photos as Chronicler, Tim Smith.
- Joe Kanocz
- Moderator
- Posts: 580
- Joined: Thu Nov 17, 2011 5:06 pm
Re: Tender work session Antonito Nov 4, 2011
by Joe Kanocz » Fri Nov 25, 2011 2:42 pm

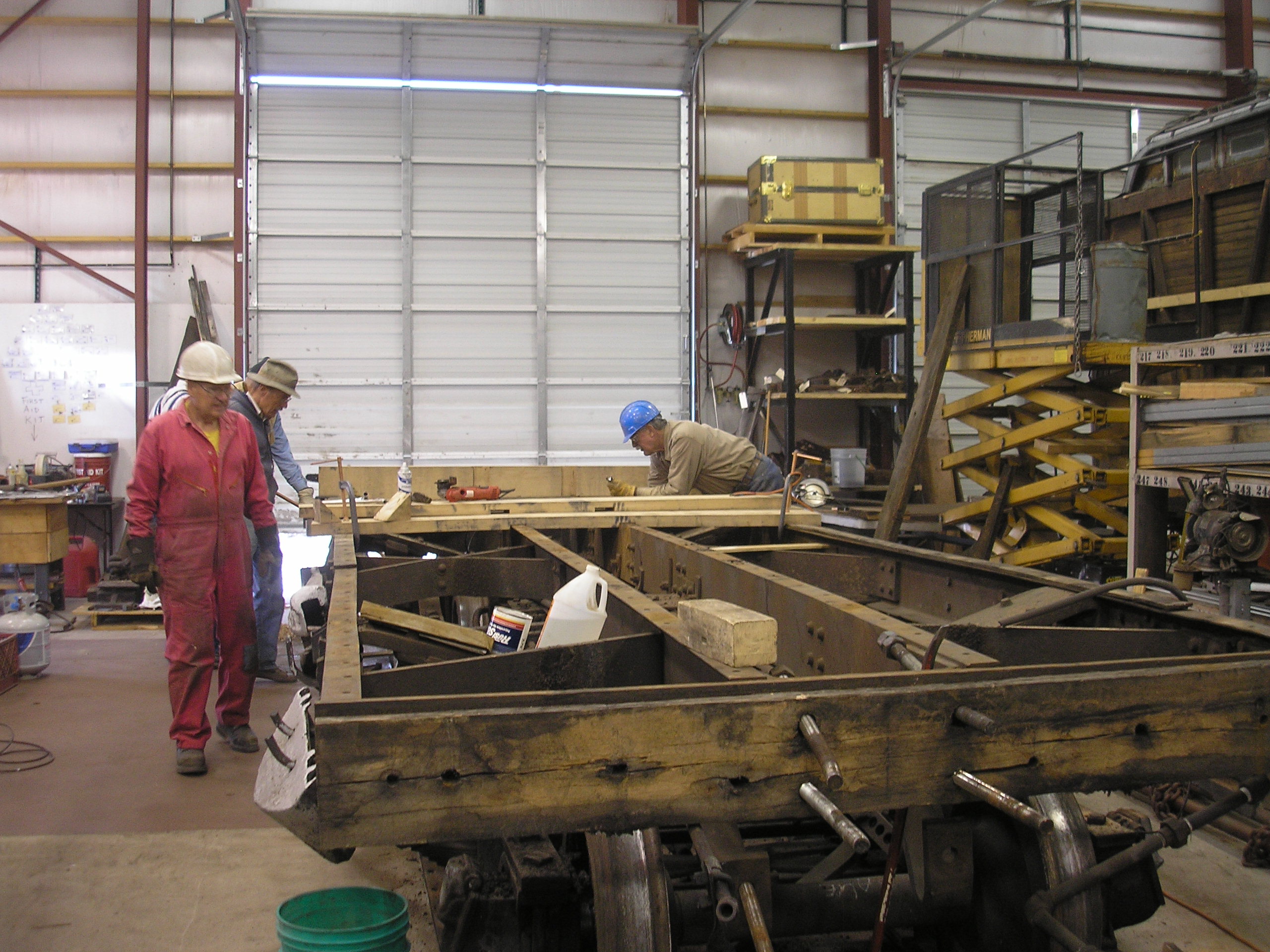

Old wood taken off frame.
- Joe Kanocz
- Moderator
- Posts: 580
- Joined: Thu Nov 17, 2011 5:06 pm
Re: Tender work session Antonito Nov 4, 2011
by Joe Kanocz » Fri Nov 25, 2011 2:47 pm

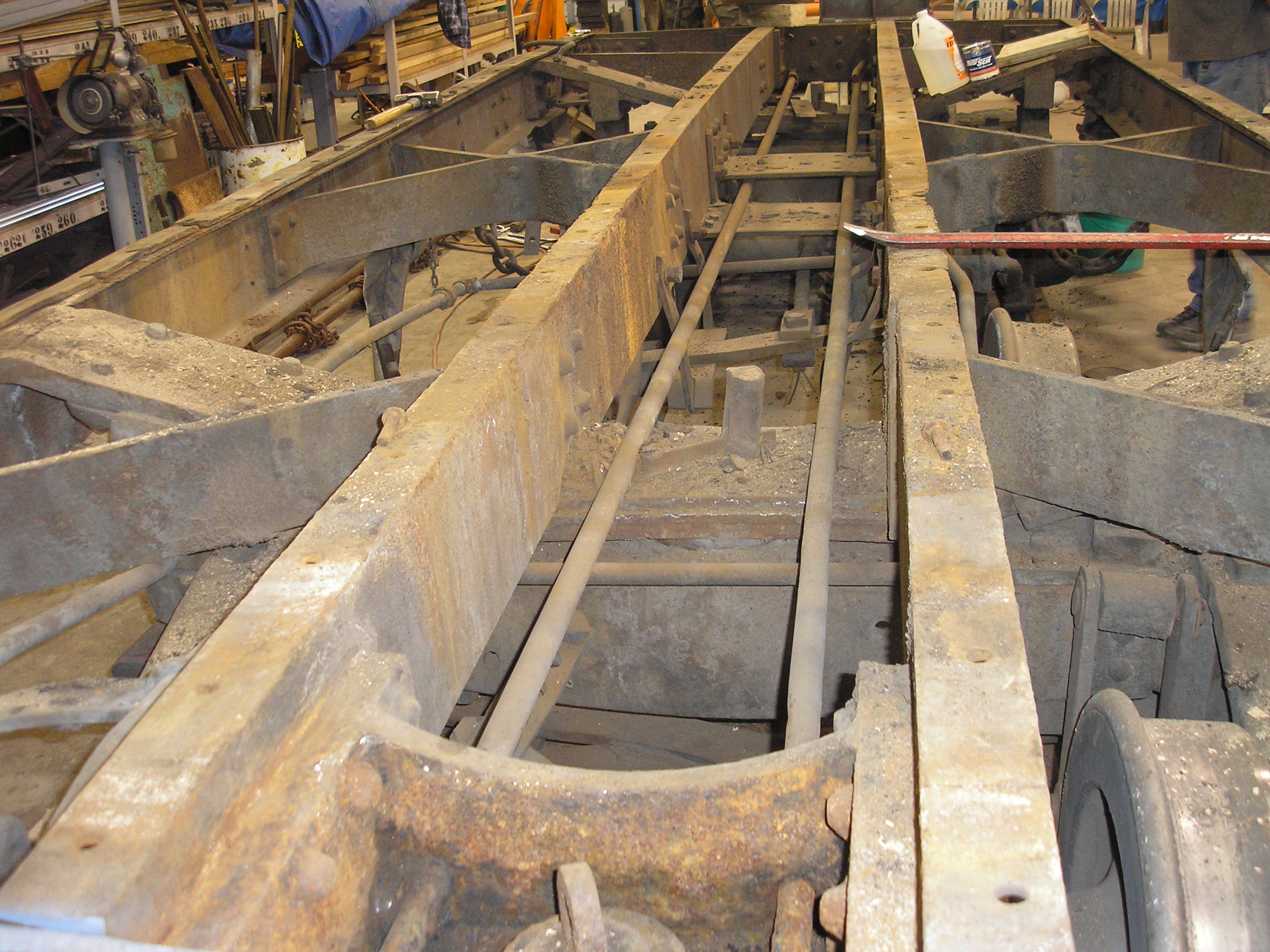

View of tender from the top. Notice the two metal rods appx 1" in the center. These rods are what carries the tension from the locomotive through the tender. This way the frame avoids undue tension and stress.
- Joe Kanocz
- Moderator
- Posts: 580
- Joined: Thu Nov 17, 2011 5:06 pm
Re: Tender work session Antonito Nov 4, 2011
by Joe Kanocz » Fri Nov 25, 2011 2:50 pm

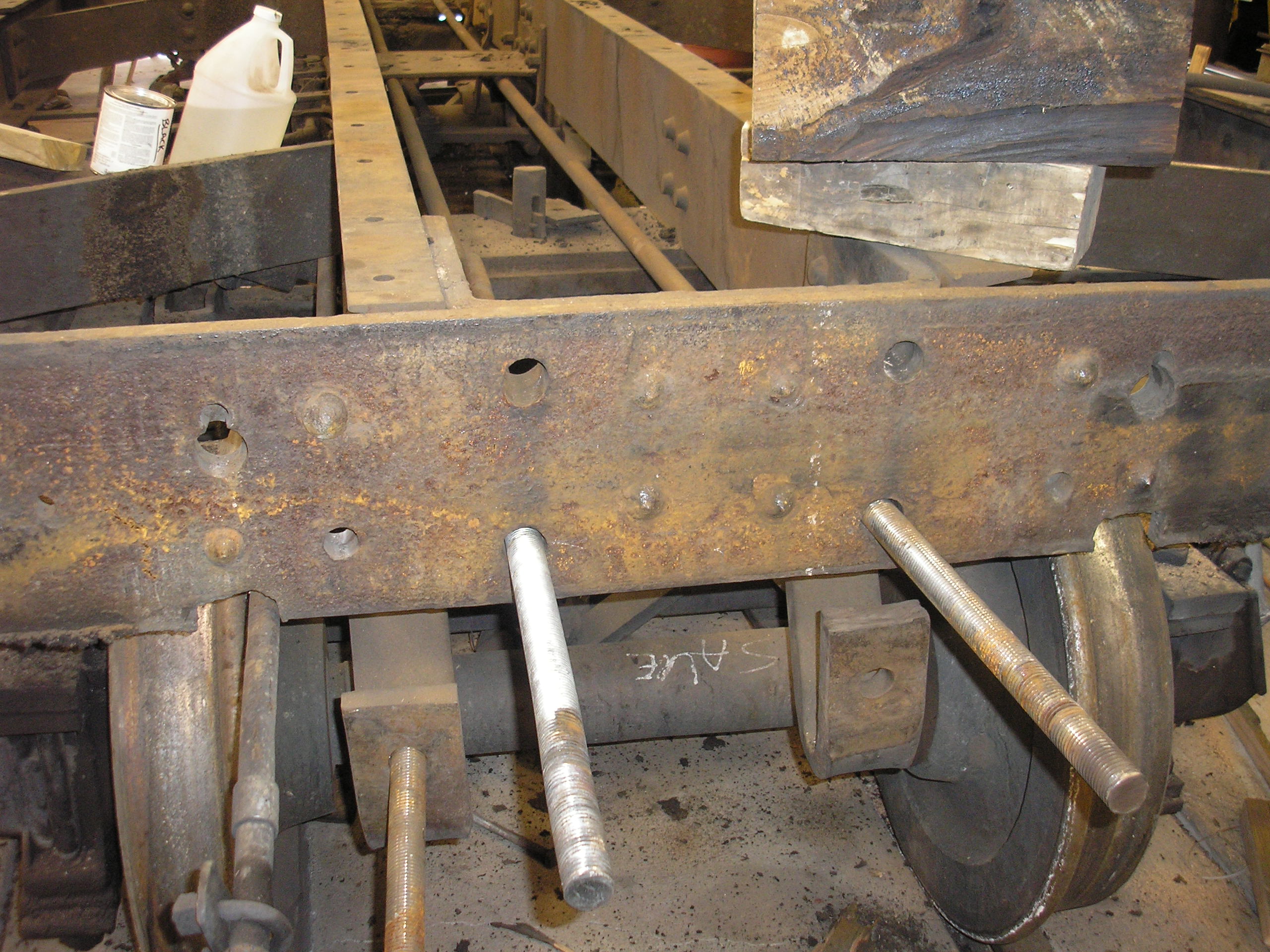

End view of the rods. When you ride behind the rebuilt 463, these rods are what carries the pull of the locomotive through the tender to the coupler.
- Attachments
-
- Joe Kanocz
- Moderator
- Posts: 580
- Joined: Thu Nov 17, 2011 5:06 pm
Re: Tender work session Antonito Nov 4, 2011
by Joe Kanocz » Fri Nov 25, 2011 3:03 pm

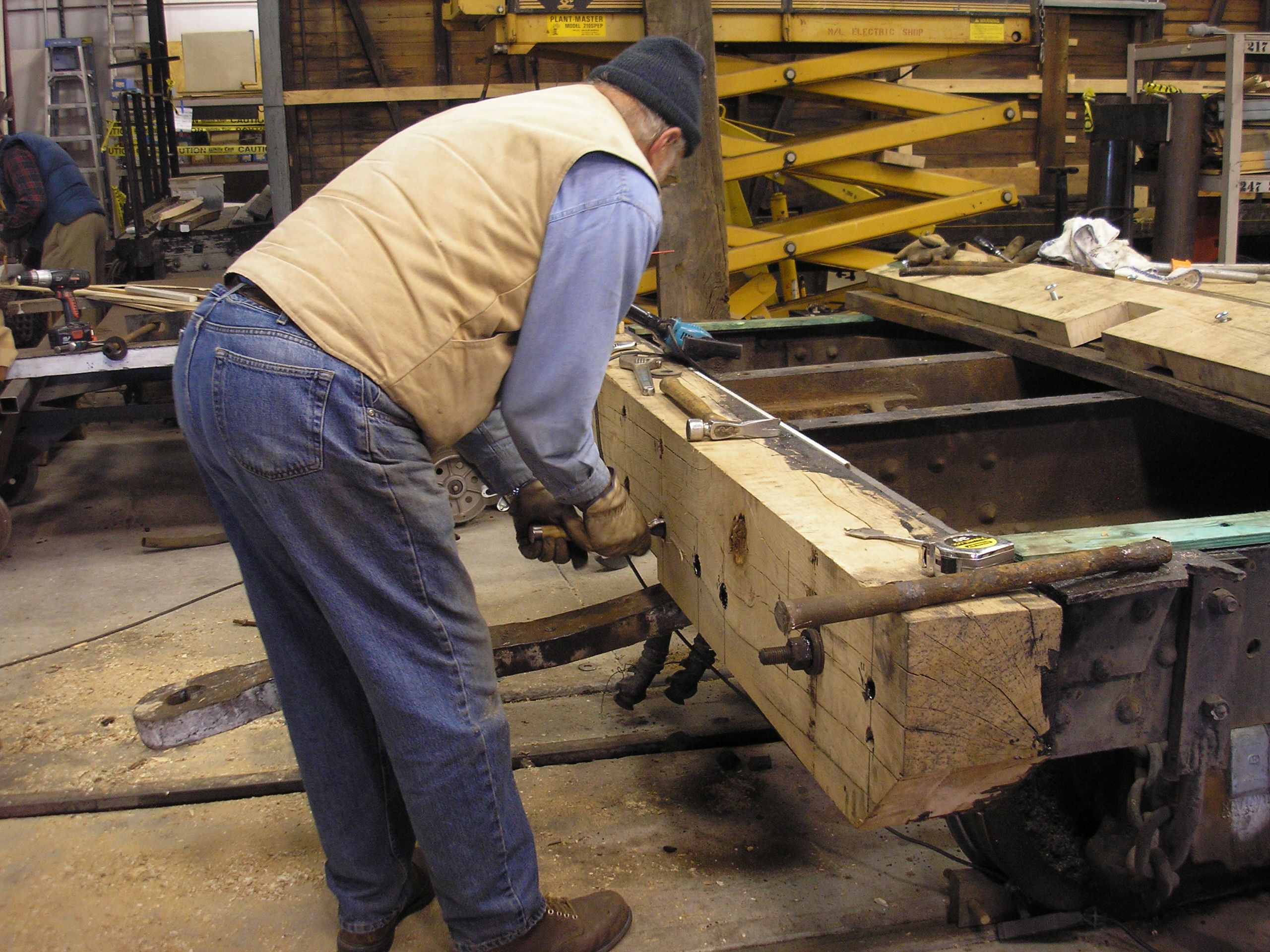

New white oak end sill installed.
- Joe Kanocz
- Moderator
- Posts: 580
- Joined: Thu Nov 17, 2011 5:06 pm
Re: Tender work session Antonito Nov 4, 2011
by Joe Kanocz » Fri Nov 25, 2011 3:05 pm

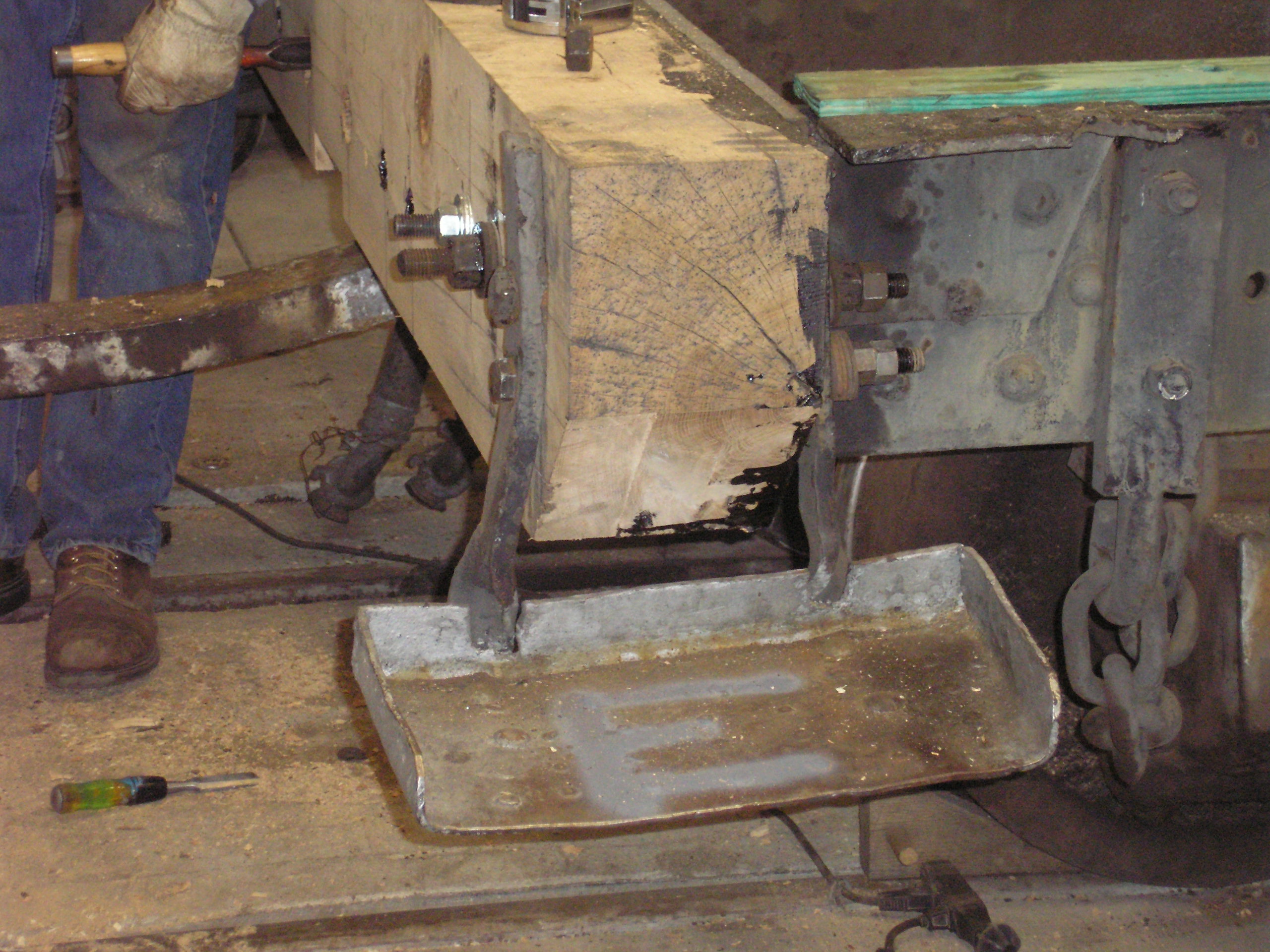

Hardware being installed.
- Joe Kanocz
- Moderator
- Posts: 580
- Joined: Thu Nov 17, 2011 5:06 pm
Re: Tender work session Antonito Nov 4, 2011
by Bill Kepner » Thu Dec 08, 2011 9:58 pm
Looks like the correctly figured out that the steps marked "E" belong on the engineer's side of the tender.
- Bill Kepner
- Brakeman
- Posts: 20
- Joined: Tue Nov 29, 2011 8:36 am
Re: Tender work session Antonito Nov 4, 2011
by Joe Kanocz » Fri Dec 09, 2011 7:12 am
That was a very clever system, huh :)
